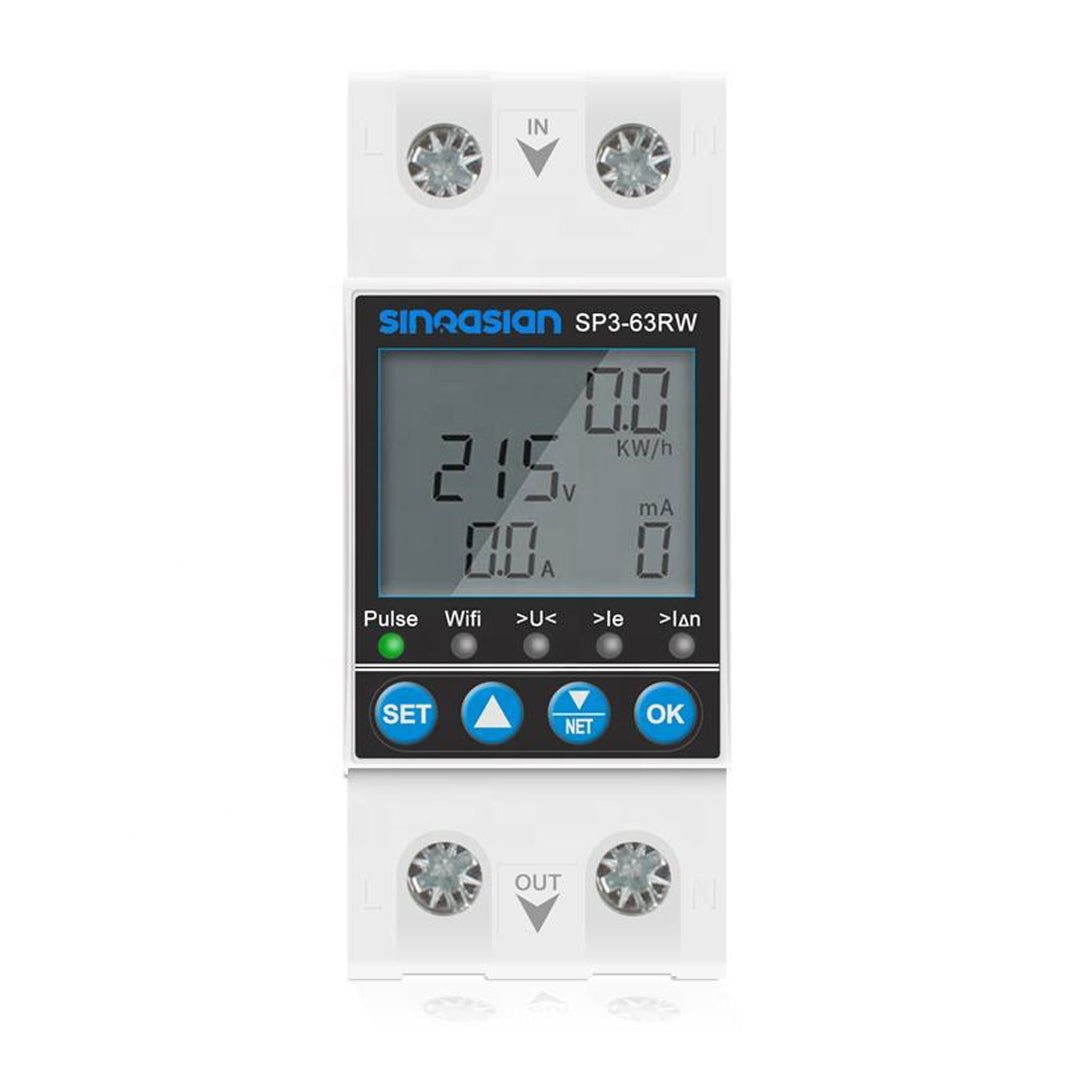

SP3-63RW Adjustable Wifi Voltage Current Protector SP3-63RW is the latest SP3 series wifi control voltage protector product launched by our company. It is mainly used in AC 50Hz or 60Hz applications, rated voltage 400V and below, and rated operating current 63A and below and used for overvoltage, under-voltage, and overcurrent protection of photovoltaic equipment, office buildings, residential buildings, etc. in power distribution lines and equipment, etc.
Key Features Overvoltage protection Undervoltage protection Current protection Automatic reconnect Time delay power on Electroplating metering Residual current protection Temperature protection Timer WiFi contro
Specification Model Code SP3-63RW Pole: 2Pole(36mm) Rated voltage: 110/120V; 220/230V AC Rated frequency: 50- 60Hz Rated Current: 63A Electricity metering: 0-999999K/h Class0.5 Power consumption: ＜2W Installation: 35mm symmetrical DINrail Over voltage range: 230V-300V adjustable Under voltage range: 110V-210V adjustable Over-voltage trip time: 1- 30S adjustable Over current: 1- 63A adjustable Current trip time: 1- 30S adjustable Auto reconnect times: 0-20T adjustable Residual current: 5- 99mA adjustable Auto reconnect time: 1- 500S adjustable
SP3-63RW Residual current protection and WiFi contro SP3-63R Without Residual current protection and WiFi contro
